AC DRIVE
• No Need to Upsize HP
• No Isolation Transformer
• PF Correction Not Needed
DRIVE INTERFACE
• Mounted in Door
•No Need to Open Door
•Monitor Drive Status
•View Alarms
If you have a relationship with a motor rewind shop, you have a problem, not a solution!
When replacing old DC extruder drives, the meters often have to be replaced as well. Unfortunately, meters also require regular calibration and half the time don't even work. On your next drive system, upgrade to the Remote Drive Interface (RDI) and have a drive health screen to monitor the components life cycle, view alarms, and trend the drive performance which is easily scaled to readout the FPM of your line. The RDI is truly a plug-n-play solution to the GA800 drive, giving you more than just a meter than might work!
Our solution is thermally tested and installed on hundreds of extruders in the US!
PROTECT YOUR INVESTMENT
WE Stock UP TO 500HP!
3-Year Warranty!
HUNDREDS INSTALLED
10% MORE EFFICIENT THAN DC
ARC FLASH OPTION
•Remotely Mounted Breaker (Top, Side, or Back)
•No Power in Panel
•LED/Probe Verification
DC to AC
CONVERSIONS
WE Stock Up to 500HP!
3-Year Warranty!
HUNDREDS INSTALLED
10% MORE EFFICIENT THAN DC
IT IS NOT JUST A DRIVE IN A BOX!

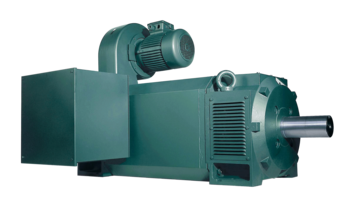

RELIANCE RPMAC
•Fits in Old DC Space
•Can Mount Under the Barrel
•Less Power Consumption
•Better Insulation
•Better Speed Regulation
•Filter Kit Included
COMMON PROBLEMS
Thinking about taking on a DC to AC conversion? There are many pitfalls in this area where a little advice beforehand can go a long way in preventing big headaches down the road. We can help!

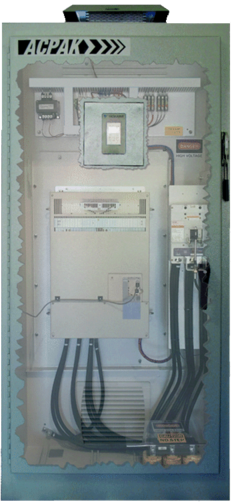

When transitioning from an older DC extruder drive, there is more to the decision than simply placing an AC drive in the old box! At ICT, we have pre-engineered and thermally tested a design that requires no AC and many built-in features making your installation trouble-free. We stock 100HP, 150HP, 200HP, 250HP, 300HP, 400HP and 500HP systems and install about 70 per year on extruders! Combine our features, delivery with a three-year drive warranty and you will find this a solution hard to beat!
COVERED REACTOR
•Eliminates Iso-Transformer
•Reduces Heat Losses
•Limits Energy Losses
DC to AC
CONVERSIONS
LAMINATED FRAME MOTORS
Not all motors are the same, and an Inverter Rated Motors is not the same as a Vector Rated Motor. Choosing the correct motor is as important as selecting the correct drive. Let ICT help you!
10GA STEEL BOX
•Heavy Ga Steel Enclosure
•More Stable
•More Durable

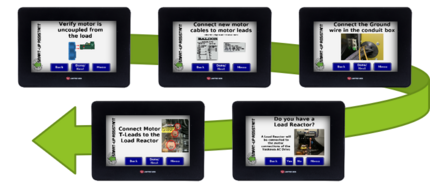

Integrated Control Technologies (ICT) is offering a product enhancement for the Remote Drive Interface that works with the ACPAK that allows customers to start-up their AC drive package themselves with the expert assistance of ICT. The SMART-UP ASSISTANT takes you step-by-step through the start-up of your ACPAK. In addition, ICT can connect to your drive and verify the settings. THERE IS NOTHING ON THE MARKET LIKE THIS!!!
Our solution is thermally tested and installed on hundreds of extruders in the US!
ICT crates every ACPAK in large wooden containers to prevent any possibility of damage during shipment, so you don't have to be concerned about unexpected delays!
ENERGY STUDIES
If you are having a difficult time justifying an upgrade to AC, ICT can help! We can provide quick estimates or even conduct full studies to help you achieve more efficient systems.
If you have a relationship with a motor rewind shop, you have a problem, not a solution!
SHIPPING CRATES
PRE-ENGINEERED FEATURES
FLANGE DISCONNECT
•Easier to Operate•Easier to Open and Close
•No Alignment Issues
Extrusion Line upgrades
CALL US +1.9729067445
